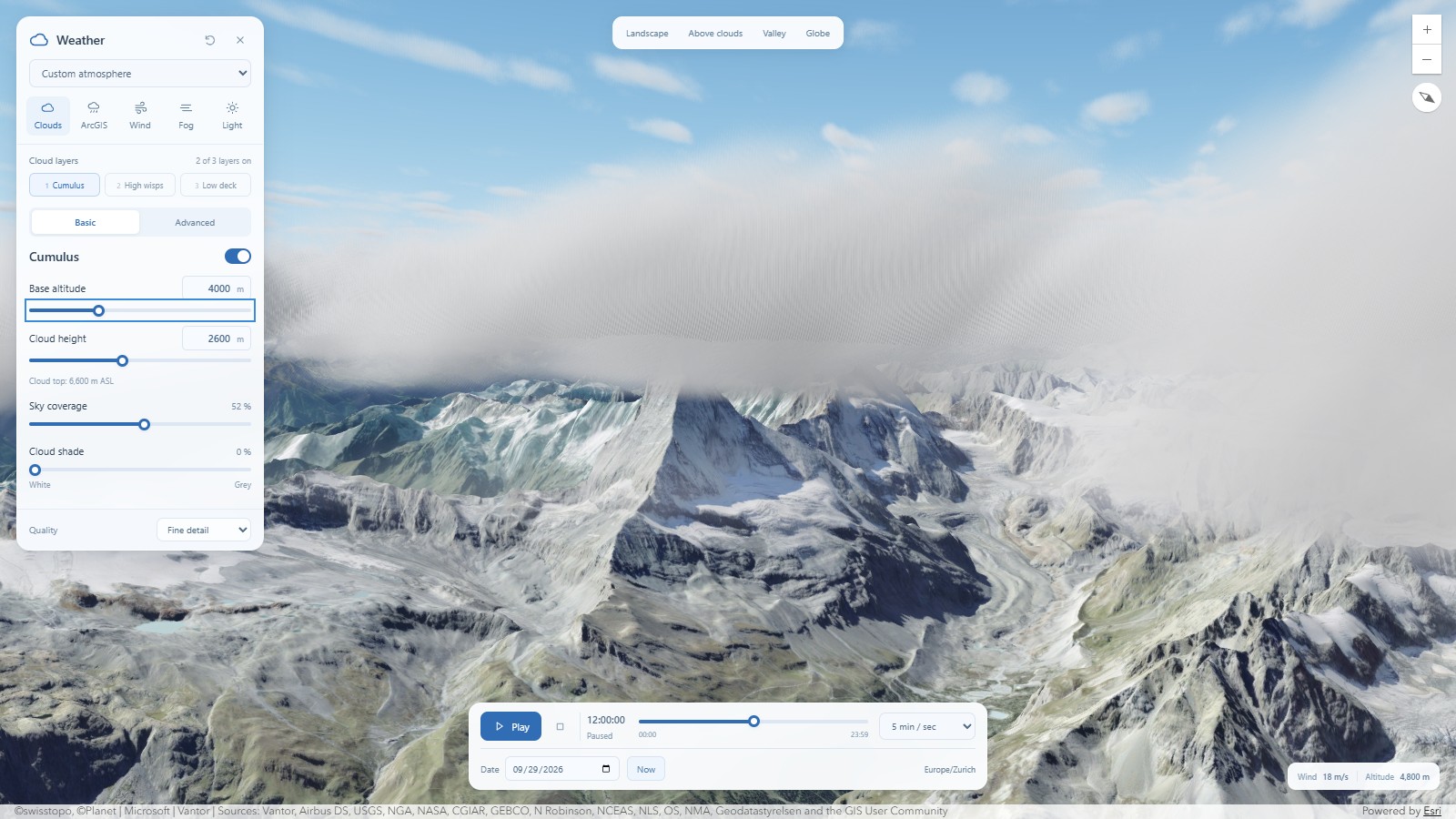

Procedural clouds based at 4,000 m around the Matterhorn in 3D Weather Lab

ArcGIS - Volumetric clouds and fog

3D Weather Lab

Explore volumetric clouds and valley fog in an ArcGIS 3D scene, with controls for wind, sunlight and time.

ArcGISWebGLGLSLTypeScript

An interactive 3D atmosphere studio opening above the Matterhorn. Choose a weather preset or adjust the altitude, thickness and density of three independent cloud layers, then add valley fog. Wind moves the clouds while the date and time change the lighting. Explore the landscape from the valley, above the clouds or from space.

Custom WebGL2 shaders render clouds and fog as volumes inside ArcGIS through RenderNode. They calculate procedural density, lighting and transparency while respecting terrain depth. ArcGIS's native rain and snow effects have separate controls. The atmosphere is generated procedurally; rendering quality and performance depend on the device.

  • Three adjustable cloud layers and valley fog
  • Weather presets, wind, lighting and time playback
  • Ray-marched volumes composed with ArcGIS scene depth
